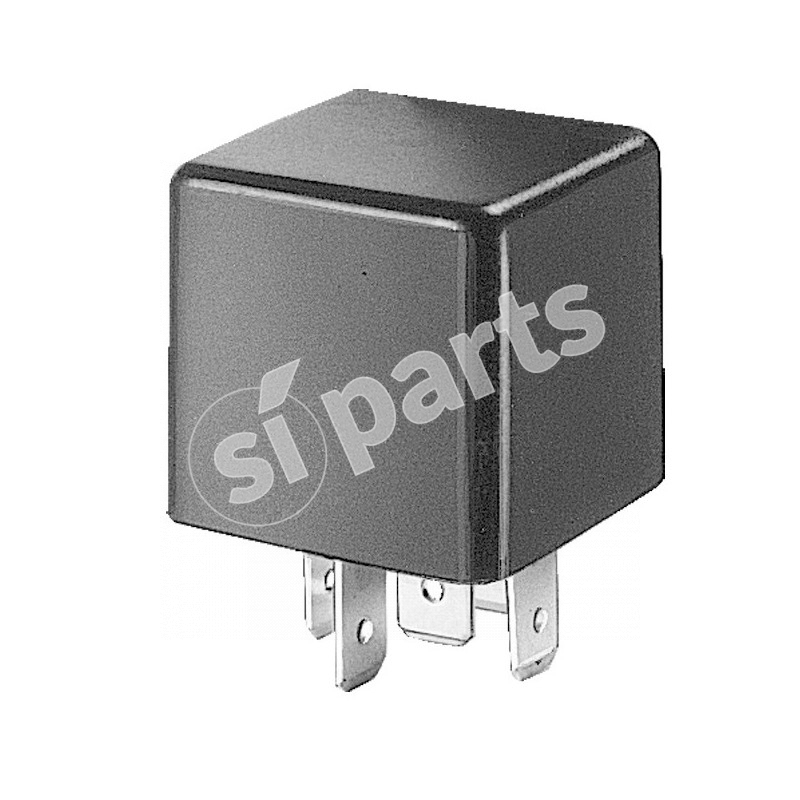

The image shown here is for illustrative purposes only.
RELAY
Code: 18.0139.0000.02
Doc. Code: 18-0139-0000-02
Pack 5 pieces.
€550.75
(€110.15 Cad.)
Tax excluded
(671.92 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description
WORKING
- When the control unit switches on, the output (pin 53S) is Open.
- When the input is activated (pin T=+12V), the relay is energized
and the output is activated at +12V.
- After 180 sec the output is deactivated. If during this 180-sec
time other pulses get to the input, these are ignored.
- After 180 sec any change of input state doesnt change output state.
- When the control unit switches on, the output (pin 53S) is Open.
- When the input is activated (pin T=+12V), the relay is energized
and the output is activated at +12V.
- After 180 sec the output is deactivated. If during this 180-sec
time other pulses get to the input, these are ignored.
- After 180 sec any change of input state doesnt change output state.
POWER SUPPLY VOLTAGE V
12V
MAX LOAD
5 A
DELAY
180s
APPLICATIONS
