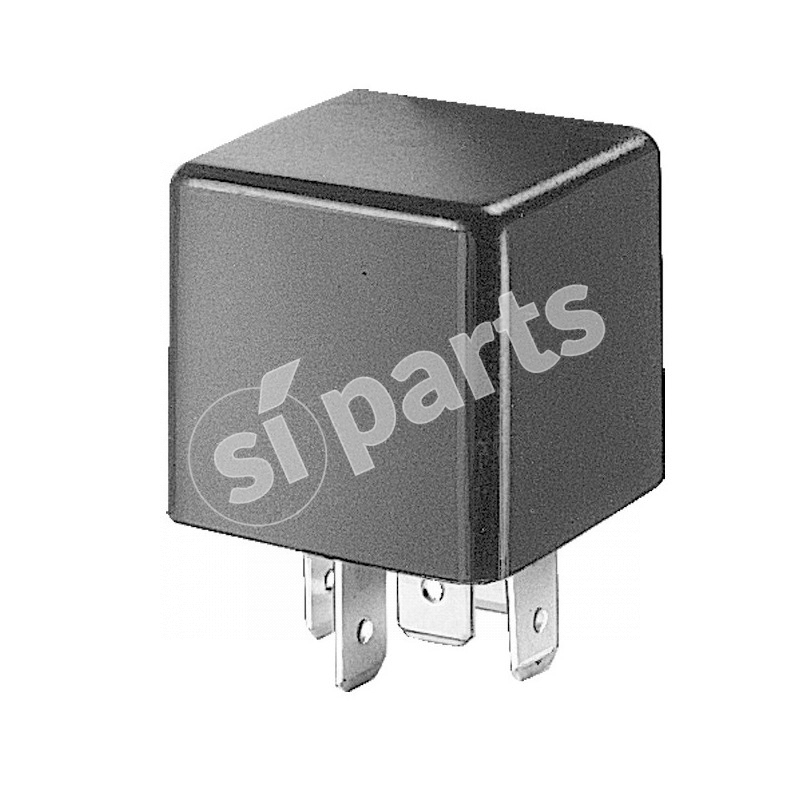

TIMER

TIMER

COBO
Brand COBO Product Code 1006040

Code: 00117136.02

Doc. Code: 00117136_$2

Pack 15 pieces.

€856.50
(€57.10 Cad.)
Tax excluded
(1044.93 € Tasse incluse)

Quantity

Add to Cart
  • SSL 100% secure website
  • Fast shipping with national and international couriers
Description WORKING
- Switching the control unit on, the relay is de-energized and the outputs are:
NO contact (pin 53S) Open, NC contact (pin 31) +12V.
- Activating the input on pin T (+12V), the relay is energized and the outputs are:
NO contact (pin 53S), NC contact (pin 31) Open.
- After 10 seconds the relay is de-energized and the input is deactivated.
If during this 10-sec time other pulses get to the input, these are ignored.
POWER SUPPLY VOLTAGE V
12V
MAX LOAD
5 A
DELAY
10s
APPLICATIONS
[application-text]
COBO
Reference 1006040
