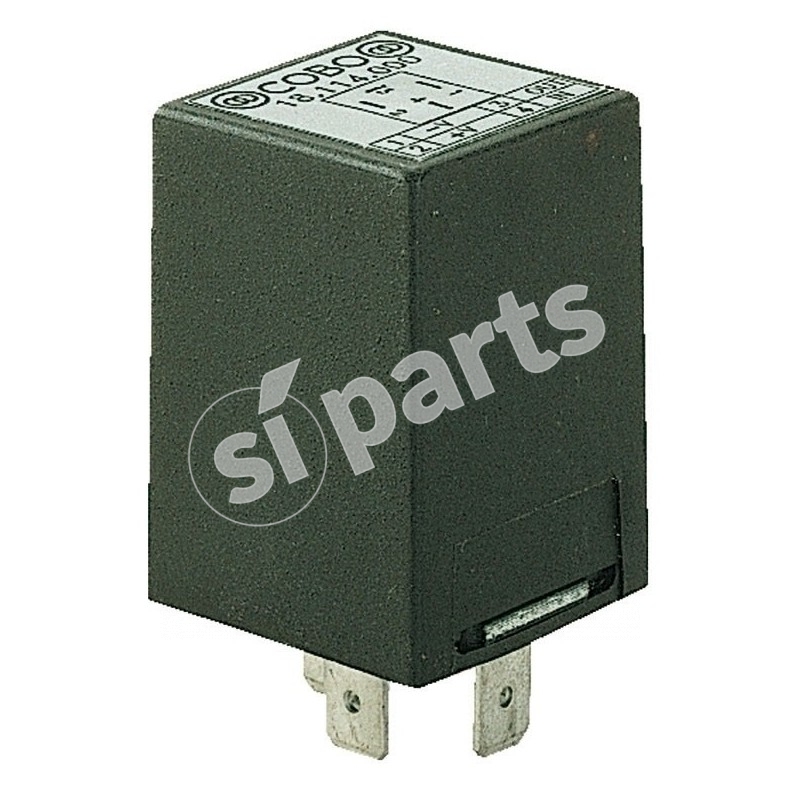

TIMER
Code: 00117092.01
Doc. Code: 00117092_$3
€94.00
Tax excluded
(114.68 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description WORKING
This timer can be adjusted from 0 to 10 sec through a trimmer placed
on the housing upper end. According to the time adjustment, the relay switches
over (pin T = +12V, pin 15 = Open) from 0 to 10 sec after input activation
(pin 53M = +12V) and remains energized until input deactivation.
This timer can be adjusted from 0 to 10 sec through a trimmer placed
on the housing upper end. According to the time adjustment, the relay switches
over (pin T = +12V, pin 15 = Open) from 0 to 10 sec after input activation
(pin 53M = +12V) and remains energized until input deactivation.
POWER SUPPLY VOLTAGE V
12V
RELAY TYPE
ADJUSTABLE
DELAY
0 ÷ 10 s
