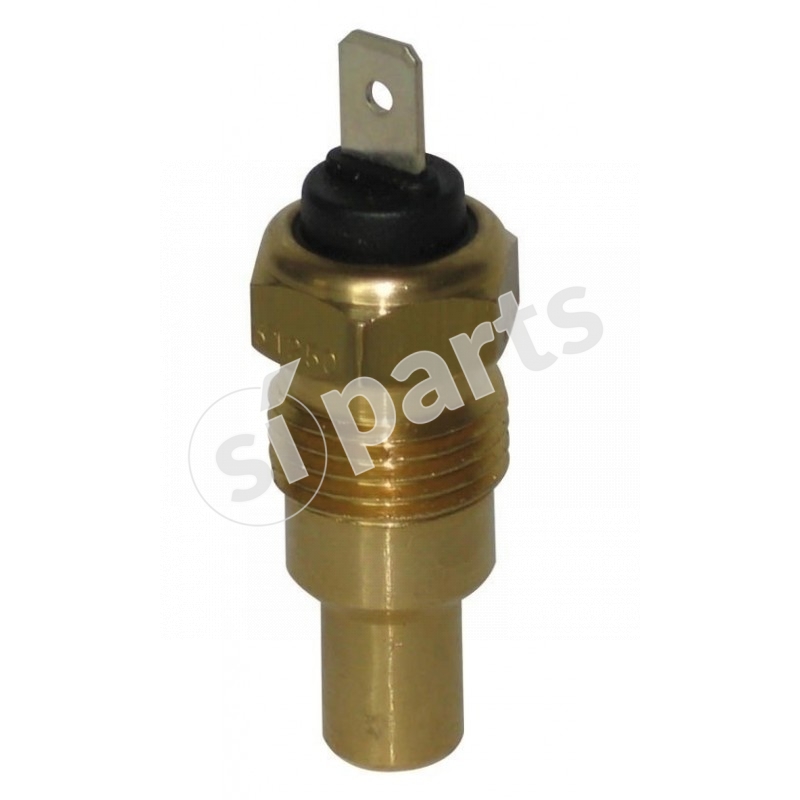

THERMISTOR 5/8X18 UNF FAE 31250
Code: 2M02004500.02
Doc. Code: 2M020045-02
€19.30
Tax excluded
(23.55 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description

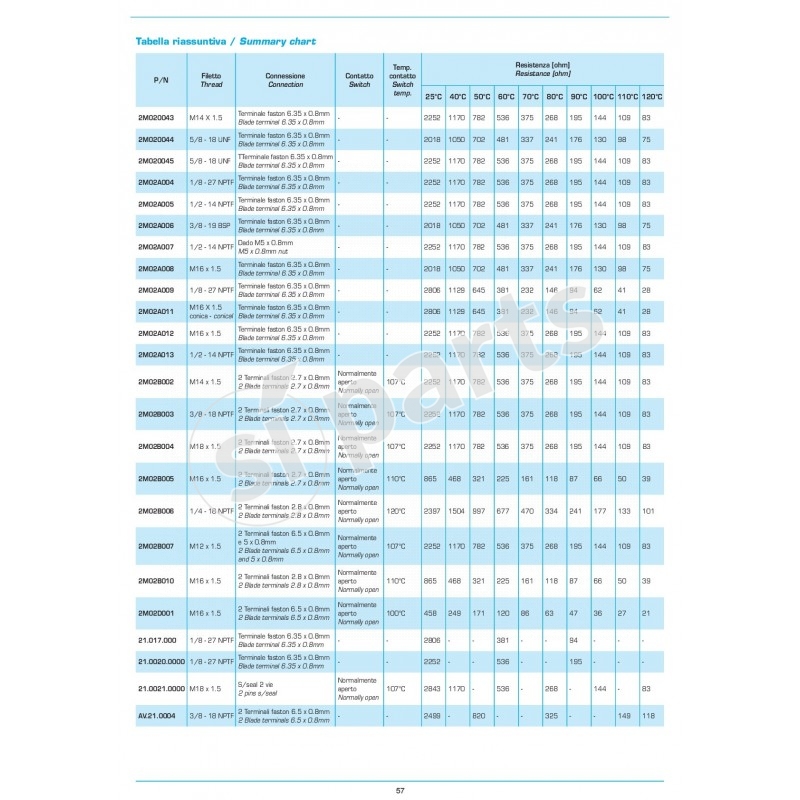

| TEMPERATURE (°C) | RESISTANCE (ohm) |
|---|---|
| 25° | 2252 ± 10% |
| 40° | 1170 ± 10% |
| 50° | 782 ± 10% |
| 60° | 536 ± 10% |
| 70° | 375 ± 10% |
| 80° | 268 ± 10% |
| 90° | 195 ± 10% |
| 100° | 144 ± 10% |
| 110° | 109 ± 10% |
| 120° | 83 ± 10% |
HOUSING MATERIAL
BRASS
THREAD
5/8 18 UNF
KEY
EXAGON 16 MM
CONNECTION
BLADE TERMINAL 6.35X0.8 MM.
POWER SUPPLY VOLTAGE V
12-24V
TIGHTEN TORQUE
<=2.5 Kgm
APPLICATIONS
