The image shown here is for illustrative purposes only.

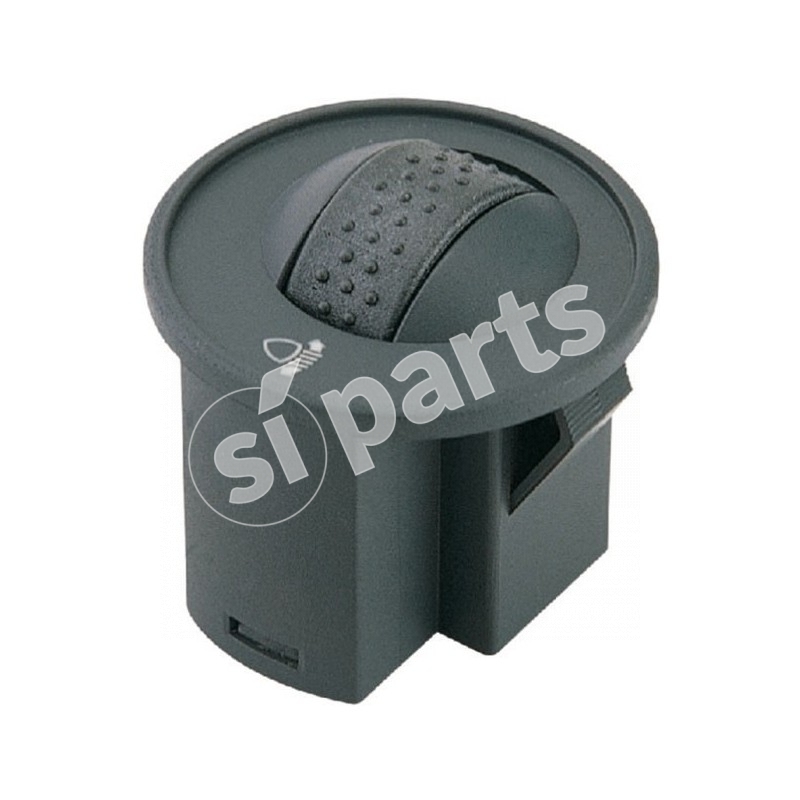

THUMBWHEEL POTENTIOMETER DEVICE
Code: 23.0164.0000.01
Doc. Code: 23-0164-0000-01
€82.40
Tax excluded
(100.53 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description
Pc housing - mineral fi lled pa wheel - terminal board
with 4 ways mqs amp integrated connector suitable for
amp mqs 50402 3022dc male connector - white colour
laser engraved icons.

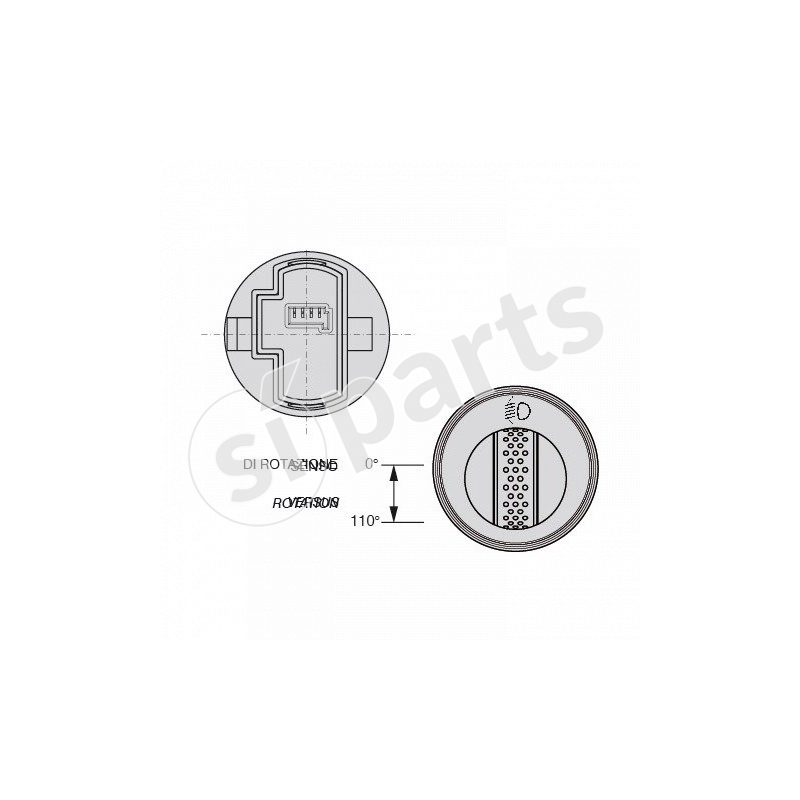

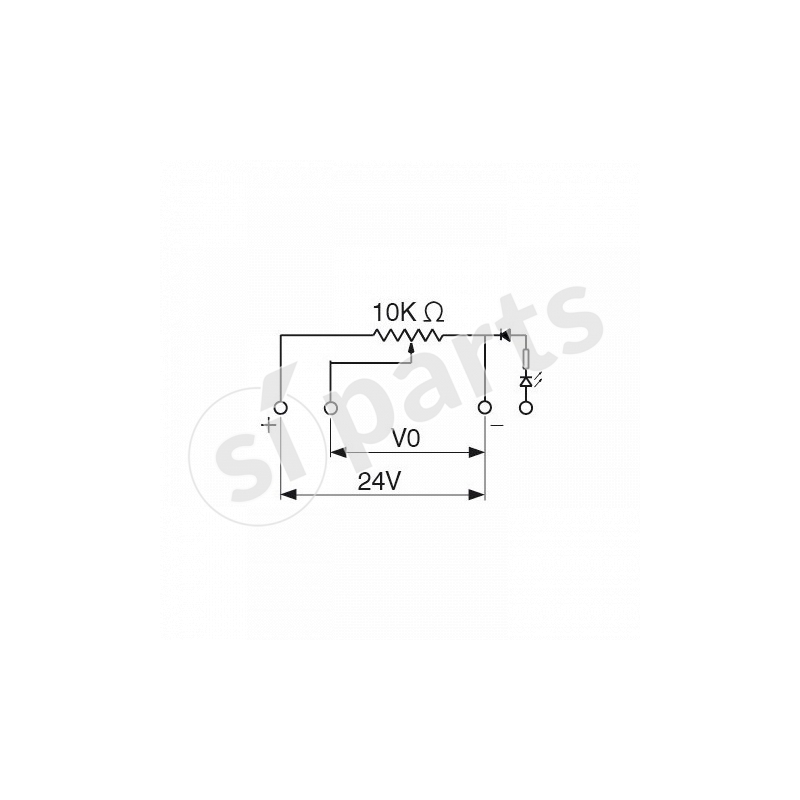

Voltage values V at the ends of the circuit
0° V0< 1,9V
110° 22.1V Potentiometer features:
Ohmic tolerance: ±20%
Mechanical tolerance: ±2.1°
(Measured on the wheel)
Electric tolerance: ±9°
(Measured on the wheel)
End resistance <50Ù
Dynamic noise <3%
with 4 ways mqs amp integrated connector suitable for
amp mqs 50402 3022dc male connector - white colour
laser engraved icons.
Voltage values V at the ends of the circuit
0° V0< 1,9V
110° 22.1V Potentiometer features:
Ohmic tolerance: ±20%
Mechanical tolerance: ±2.1°
(Measured on the wheel)
Electric tolerance: ±9°
(Measured on the wheel)
End resistance <50Ù
Dynamic noise <3%
VERSION LED
GREEN
RATED VOLTAGE
24V
APPLICATIONS
