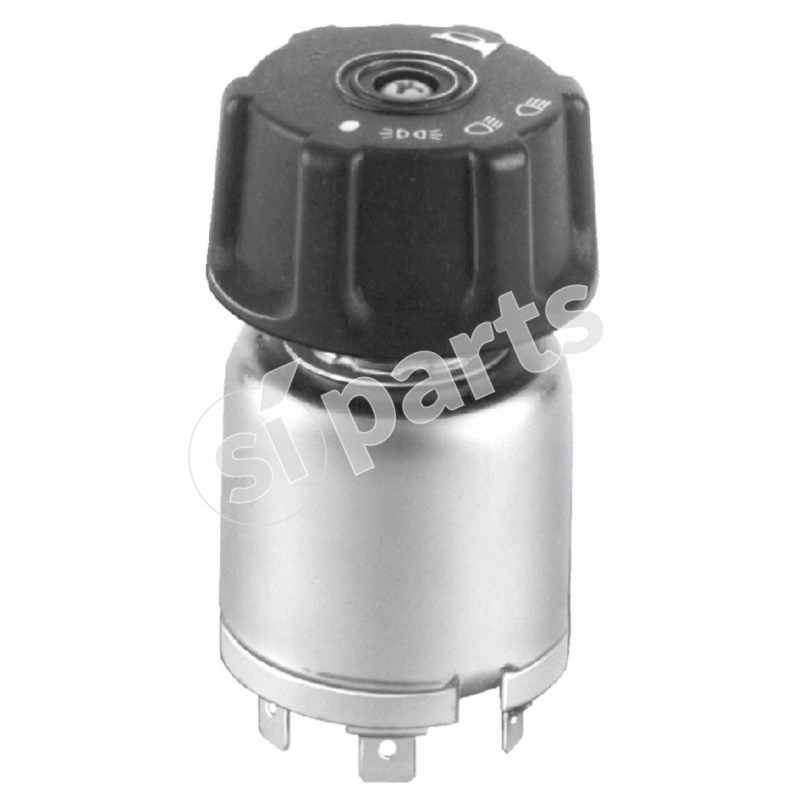

The image shown here is for illustrative purposes only.
SWITCH
Code: 23.125.000.11
Doc. Code: 23-125-000
€41.45
Tax excluded
(50.57 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description

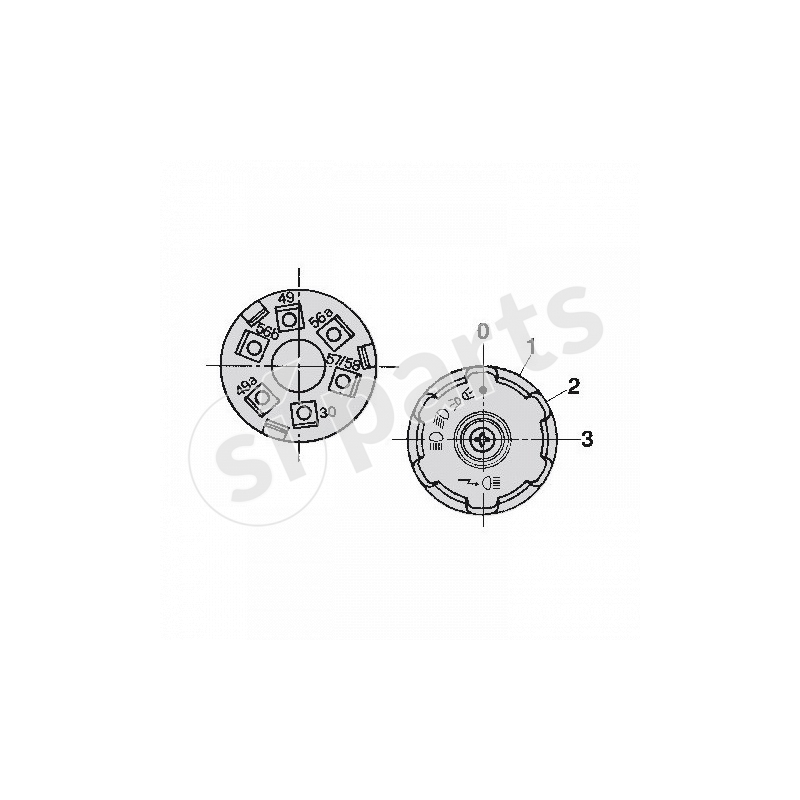

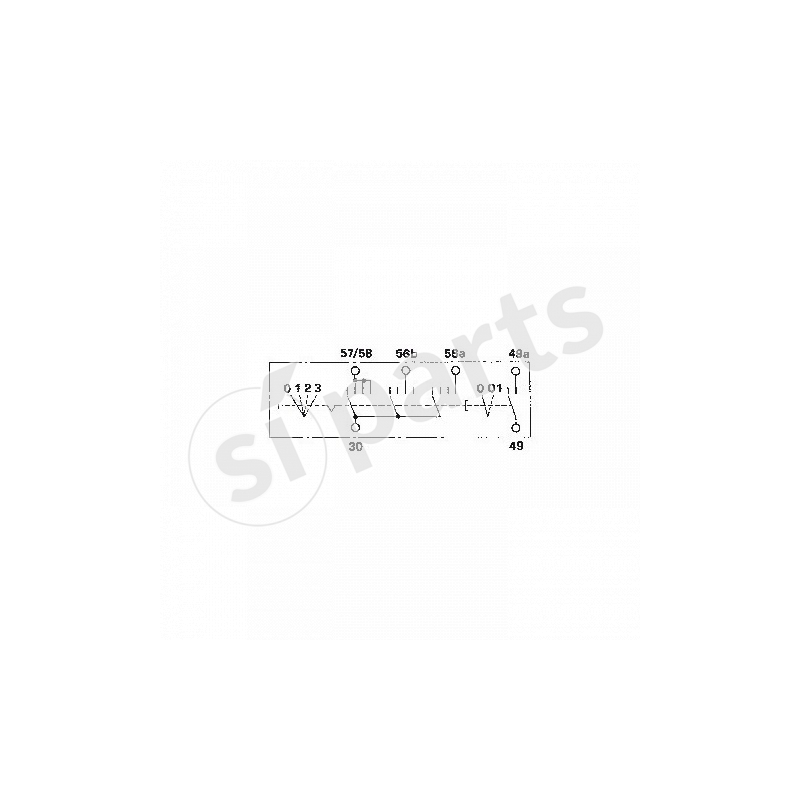

| KEY POSITION | CONNECTION | MAX CURRENT 12V | MAX CONNEC. TIME | FUNCTION |
|---|---|---|---|---|
| 0 | ||||
| 1 | 30-57/58 | 20 A | inf. | PARKING LIGHTS |
| 2 | 30-57/58 | 10 A | inf. | PARKING LIGHTS/LOW BEAMS |
| 2 | 30-56/b | 10 A | inf. | |
| 3 | 30-57/58 | 10 A | inf. | PARKING LIGHTS/HIGH BEAMS |
| 3 | 30-56/a | 10 A | inf. | |
| 30-49/a | 5 A | 1 min. | HORN |
SWITCH TYPE
LIGHT SWITCH WITH BIPOLAR HORN PUSH BUTTON 30-49A
