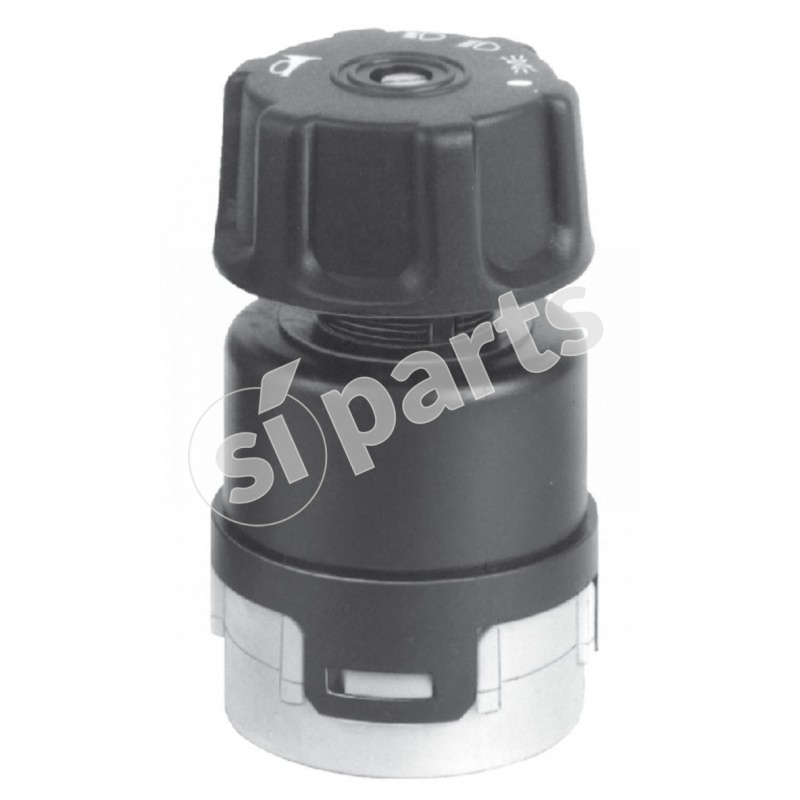

The image shown here is for illustrative purposes only.
SWITCH
Code: 23.111.000.11
Doc. Code: 23-111-000
€41.85
Tax excluded
(51.06 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description
| KEY POSITION | CONNECTION | MAX CURRENT 12V | MAX CONNEC. TIME | FUNCTION |
|---|---|---|---|---|
| 0 | ||||
| 1 | 15-58/57 | 20 A | inf. | PARKING LIGHTS |
| 2 | 15-58/57 | 15 A | inf. | PARKING LIGHTS/LOW BEAMS |
| 2 | 15-56/b | 15 A | inf. | |
| 3 | 15-58/57 | 15 A | inf. | PARKING LIGHTS/HIGH BEAMS |
| 3 | 15-56/a | 15 A | inf. | |
| 30-49 | 7 A | 1 min. | HORN |
SWITCH TYPE
LIGHT SWITCH WITH BIPOLAR HORN PUSH BUTTON 30-49
APPLICATIONS
