The image shown here is for illustrative purposes only.
LIGHT SWITCH
Code: 23.100.000.11
Doc. Code: 23-100-000
€87.05
Tax excluded
(106.2 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description

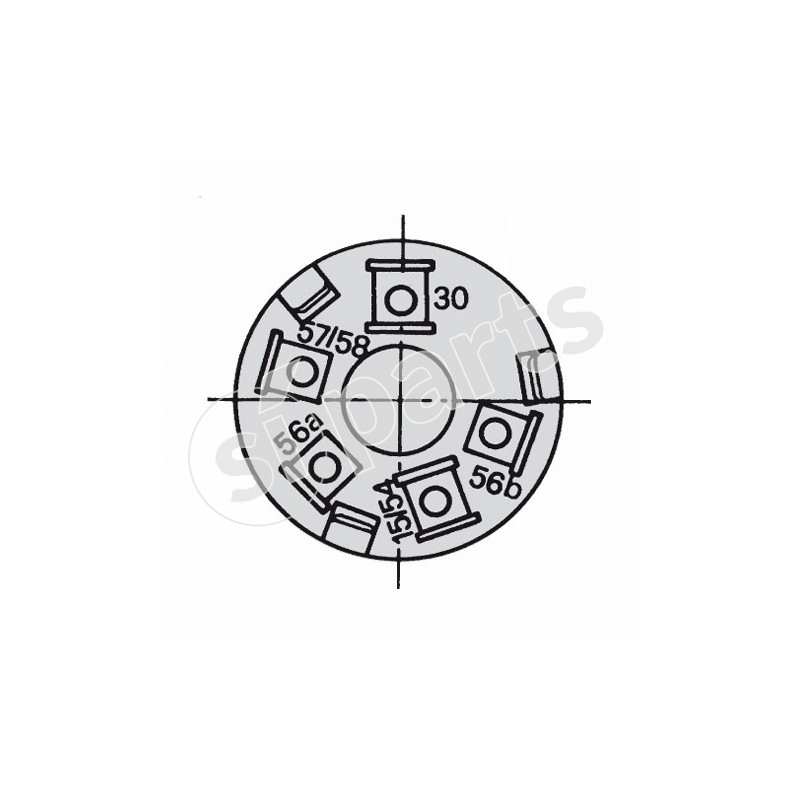

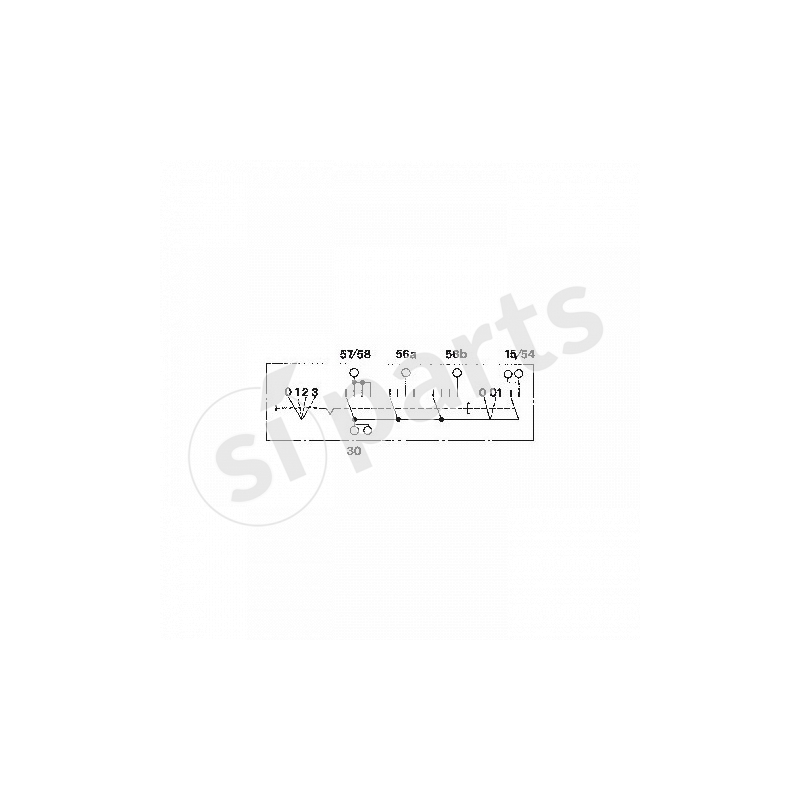

| KEY POSITION | CONNECTION | MAX CURRENT 12V | MAX CONNEC. TIME | FUNCTION |
|---|---|---|---|---|
| 0 disinnestata-off | ||||
| 0 innestata-on | 30-15/54 | 15 A | inf. | AUXILIARY FUNCTIONS |
| 1 disinnestata-off | 30-57/58 | 10 A | inf. | PARKING LIGHTS |
| 1 innestata-on | 30-15/54 30-57/58 | 5 A + 10 A | inf. | AUXILIARY FUNCTIONS |
| 2 disinnestata-off | 30-57/58 30-56/b | 15 A + 10 A | inf. | PARKING LIGHTS/LOW BEAMS |
| 2 innestata-on | 30-15/54 30-57/58 30-56/b | 15 A +10 A + 10 A | inf. | AUXILIARY FUNCTIONS |
| 3 disinnestata-off | 30-57/58 30-56/a | 10 A + 10 A | inf. | AUXILIARY FUNCTIONS/PARKING LIGHTS/LOW BEAMS |
| 3 innestata-on | 30-15/54 30-57/58 30-56a | 15 A + 10 A + 10 A | inf. | AUXILIARY FUNCTIONS/PARKING LIGHTS/LOW BEAMS |
KEY REMOVABLE
KEY ON ADN OFF IN ALL POSITIONS
