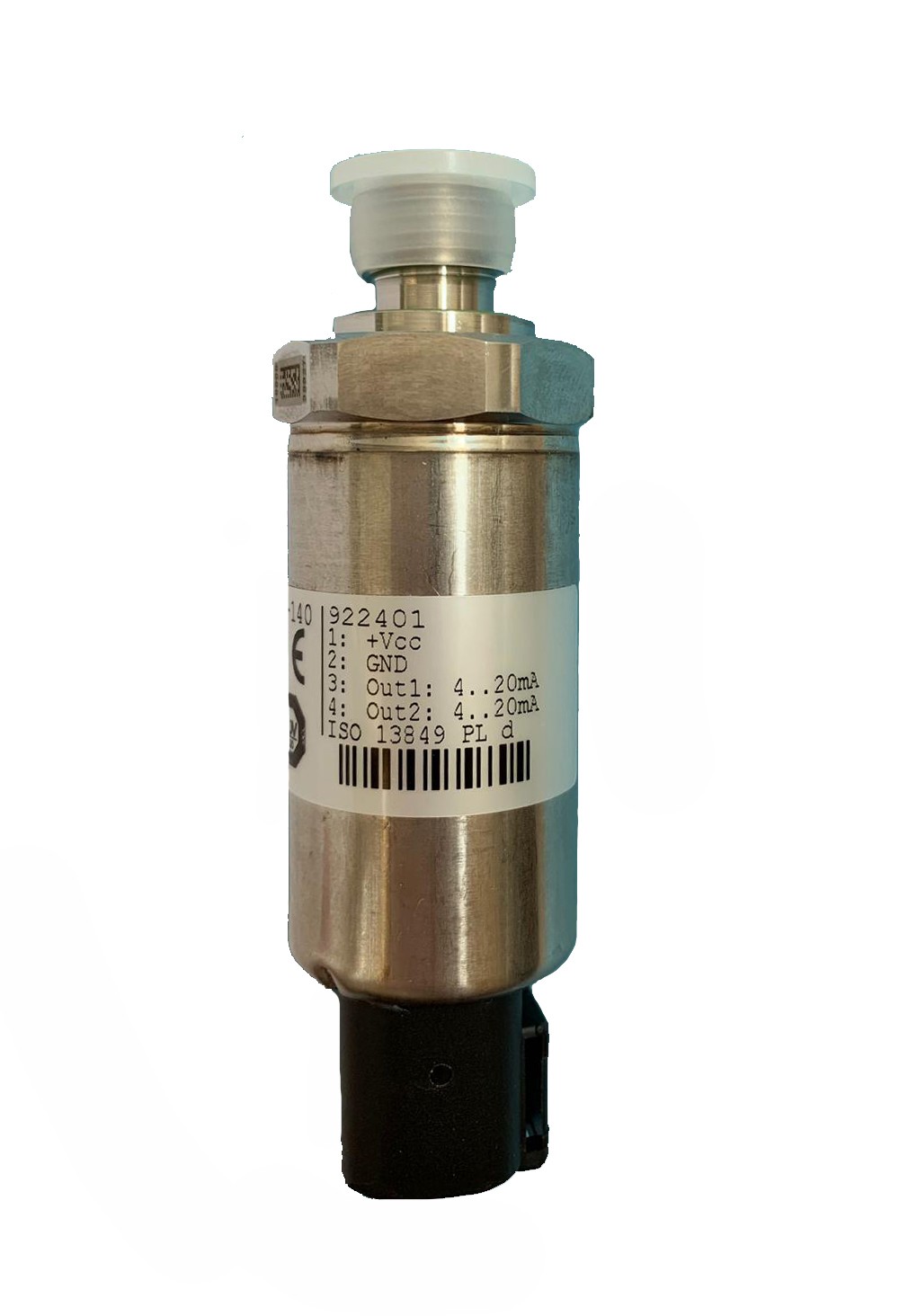

The image shown here is for illustrative purposes only.
350 BAR DEUTSCH EN15000 PRESSURE TRANSDUCER
Code: AV45.60.0133.01
Contact us for more information
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
350 BAR DEUTSCH EN15000PRESSURE TRANSDUCER
The 4700 - EN13849 redundant pressure transducer is characterized by small dimensions and high mechanical strength.
Equipped with a double thin film sensor, it is applicable when it is necessary to obtain a Performance Level in safety systems according to EN13849. A pressure transducer in this family can replace two standards, thereby reducing costs and wiring. Typical applications are the measurement of pressure in load limiting systems or moment.
| MEASURING RANGE (BAR) | OVERLOAD PRESSURES (BAR) | BURST PRESSURE (BAR) |
|---|---|---|
| 350 | 800 | 2000 |
| 450 | 1000 | 2000 |
| 600 | 1000 | 2000 |
MECHANICAL CONNECTION
G1/4A DIN 3852
TYPE CONNECTION
M12x1; 4 pole
OUTPUT SIGNAL
ANALOGUE, CURRENT TYPE 2 X 4 .. 20 MA , 4 CONDUCTOR
ACCURACY TO DIN 16086
<= ± 0.25% FS typ , <= ± 0.5% FS max
HYSTERESIS
<= ± 0.1% FS max
RIPETIBILITÀ
<= ± 0.05% FS max
RISE TIME
<= 2 ms
NUMBER OF INTERNAL SENSORS
2
APPLIED STANDARD
consistent with EN ISO 13849-1, performance level d, cat 3
MEAN TIME TO FAILURE MTTF
> 100 years
B10D
> 10^6 cycles 0 .. 100% FS
TEMPERATURA D'IMPIEGO °C
-40 .. +85 °C -40 .. +185 °F
STORAGE TEMPERATURE
-40 .. +85 °C -40 .. +185 °F
SEALING ACCORDIN TO DIN40050
IP67
POWER SUPPLY VOLTAGE V
7 .. 35 V DC load 250 Ohm
CURRENT CONSUMPTION
25 mA
WEIGHT
180 g
CERTIFICATIONS
EN61000-6-1, -2, -3, -4
