The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.442.500.01
Doc. Code: 01-442-500-01
€256.00
Tax excluded
(312.32 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description
| FUNCTION | PEAK LOAD 12V | PEAK LOAD 24V |
|---|---|---|
| HORN | 5A | 3A |
| LOW BEAM | 6,5A | 4,5A |
| HIGH BEAM | 7A | 5A |
| FLASHING | 7A | 5A |
| DIRECTION | 7A | 5A |
| MAIN LIGHTING | 5A | 3A |

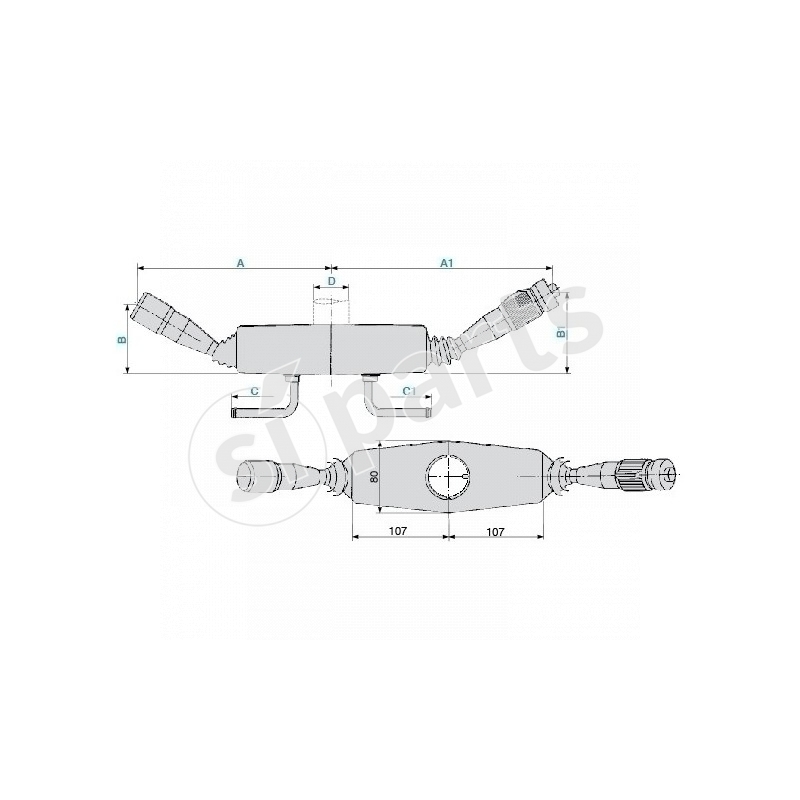

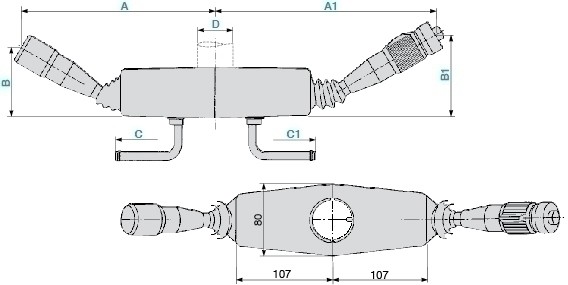

LENGTH LEVER MM
201-300
STEERING HEIGHT MM
0-100

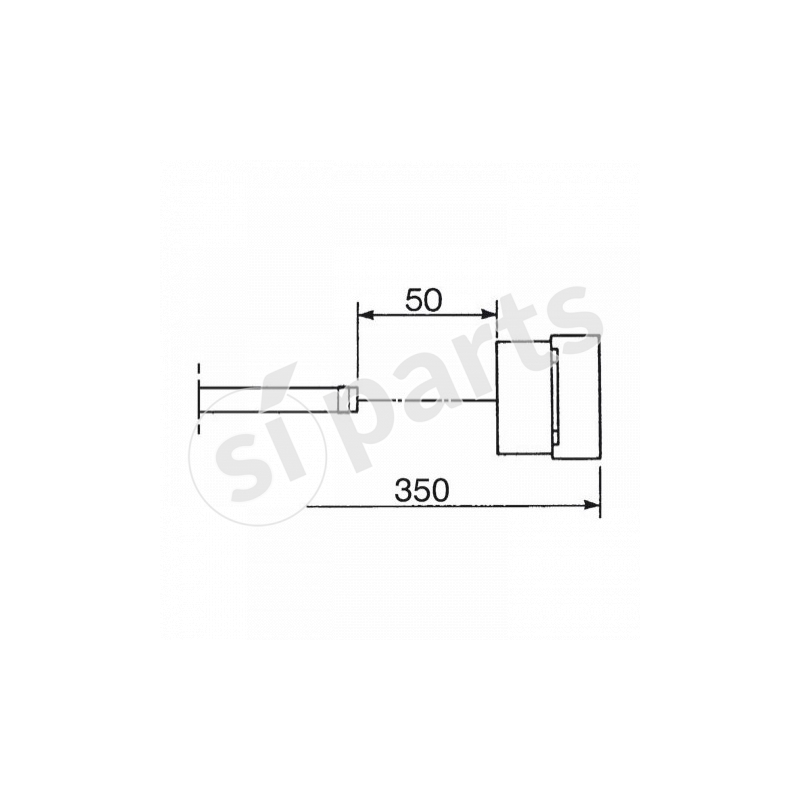

CONNECTION LENGTH MM
301-400
TYPE
SINGLE
FITTING POSITION
RH
TECHNOLOGY
FRONTALI IN ARIA
LENGTH LEVER MM DETAIL
260
STEERING HEIGHT MM DETAIL
65
CONNECTION LENGTH MM DETAIL
350
MODEL TYPE
SERIE 240
FUNCTION - HORN
Attivo
FUNCTION - LOW BEAM
Attivo
FUNCTION - HIGH BEAM
Attivo
FUNCTION - FLASHING
Attivo
FUNCTION - DIRECTION
Attivo
FUNCTION - MAIN LIGHTING
Attivo
APPLICATIONS
