The image shown here is for illustrative purposes only.

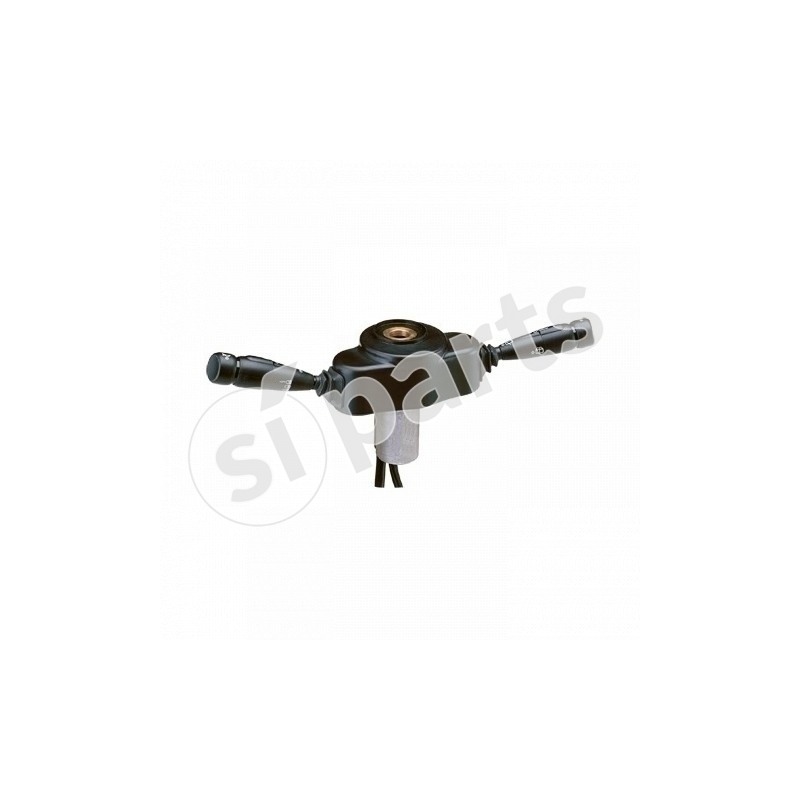

STEERING COLUMN SWITCH
Code: 01.0825.0000.01
Doc. Code: 01-0825-0000-01
€397.90
Tax excluded
(485.44 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description
| FUNCTION | PEAK LOAD 12V | PEAK LOAD 24V |
|---|---|---|
| HORN | 5A | 2,5A |
| LOW BEAM | 7A | 3,5A |
| HIGH BEAM | 7A | 3,5A |
| FLASHING | 7A | 3,5A |
| DIRECTION | 5A | 2,5A |
| WINDSCREEN WASHER | 5A | 2,5A |
| INTERMITTENT WIPERS | 5A | 2,5A |
| WINDSCREEN WIPER 1 | 5A | 2,5A |
| WINDSCREEN WIPER 2 | 5A | 2,5A |
| MOMENTARY ENGINE BRAKE | 5A | 2,5A |
| ENGINE BRAKE ON | 5A | 2,5A |
LENGTH LEVER MM
201-300
STEERING HEIGHT MM
0-100
LENGTH LEVER 1 MM
201-300
STEERING HEIGHT 1 MM
0-100

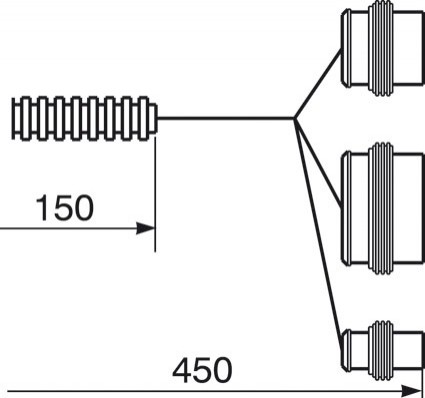

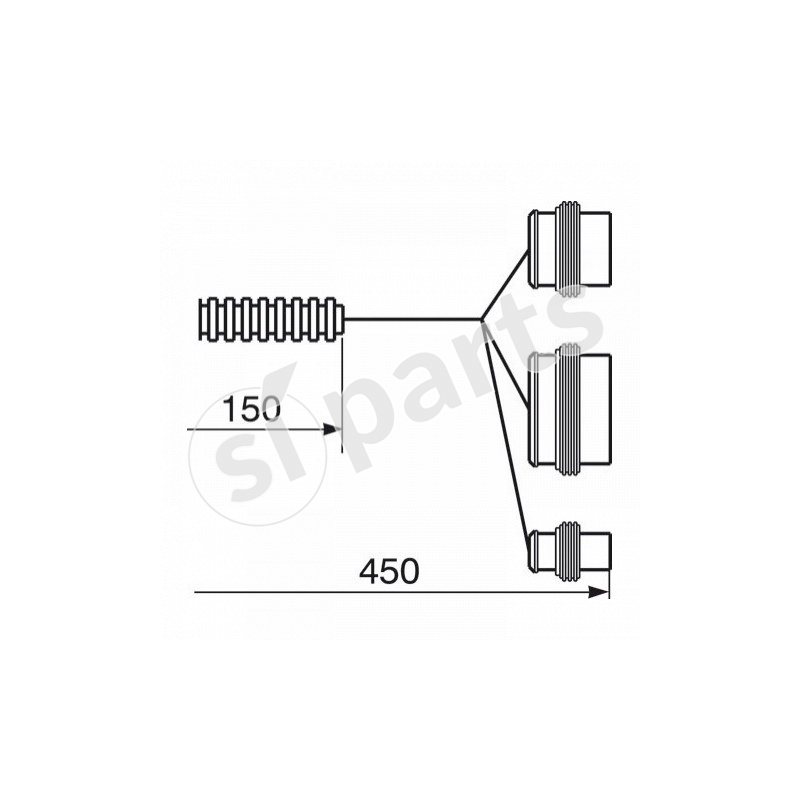

CONNECTION LENGTH MM
401-500
CONNECTION LENGTH 1 MM
401-500
FIXING
COLUMN 45 MM
TYPE
DOPPIO
TECHNOLOGY
FRONTALI IN ARIA
LENGTH LEVER MM DETAIL
227
STEERING HEIGHT MM DETAIL
50
LENGTH LEVER 1 MM DETAIL
277
STEERING HEIGHT 1 MM DETAIL
50
CONNECTION LENGTH MM DETAIL
450
CONNECTION LENGTH 1 MM DETAIL
450
MODEL TYPE
SERIE 240
FUNCTION - HORN
Attivo
FUNCTION - LOW BEAM
Attivo
FUNCTION - HIGH BEAM
Attivo
FUNCTION - FLASHING
Attivo
FUNCTION - DIRECTION
Attivo
FUNCTION - WINDSCREEN WASHER
Attivo
FUNCTION - INTERMITTENT WIPERS
Attivo
FUNCTION - WINDSCREEN WIPER 1
Attivo
FUNCTION - WINDSCREEN WIPER 2
Attivo
FUNCTION - MOMENTARY ENGINE BRAKE
Attivo
FUNCTION - ENGINE BRAKE ON
Attivo
APPLICATIONS
