The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.0783.0000.01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description
| FUNCTION | PEAK LOAD 12V | PEAK LOAD 24V |
|---|---|---|
| HORN | 5A | 3A |
| LOW BEAM | 6,5A | 4,5A |
| HIGH BEAM | 7A | 5A |
| FLASHING | 7A | 5A |
| MAIN LIGHTING | 5A | 3A |
| FORWARD GEAR | 8A | 5A |
| REVERSE GEAR | 8A | 5A |
| DIRECTION | 7A | 5A |
| WINDSCREEN WASHER | 5A | 3A |
| WINDSCREEN WIPER 1 | 8A | 5A |

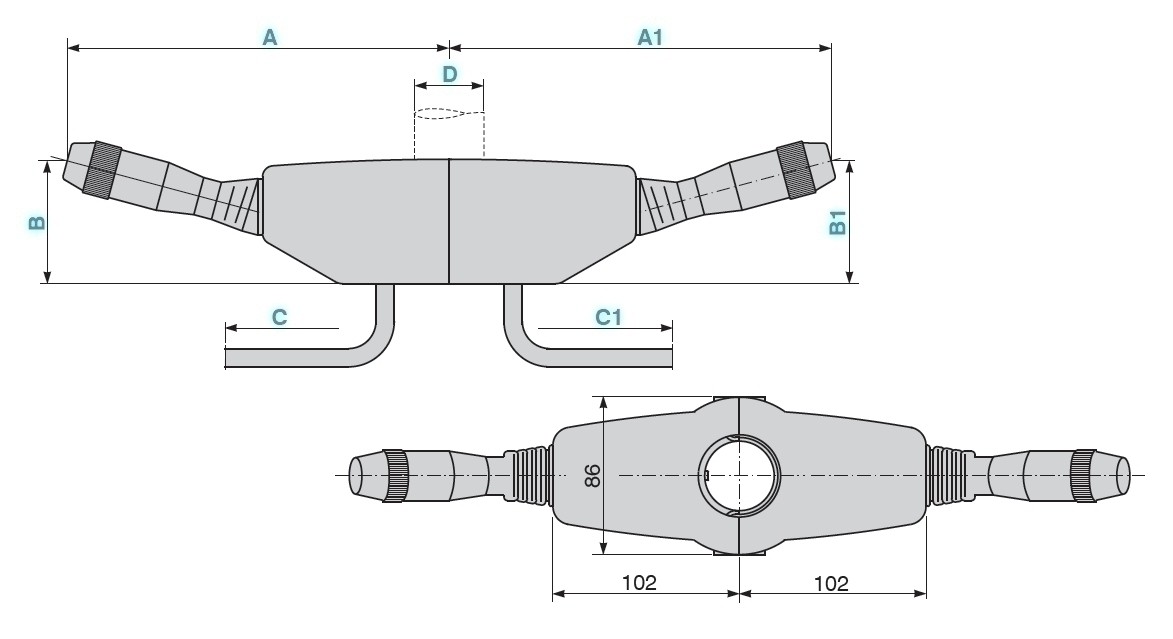

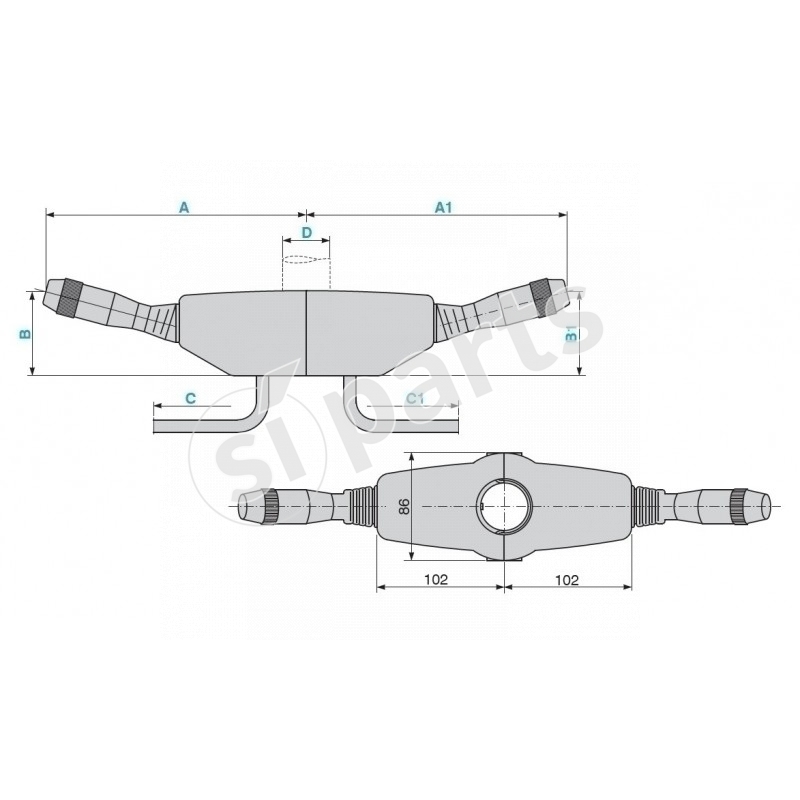

LENGTH LEVER MM
201-300
STEERING HEIGHT MM
0-100
LENGTH LEVER 1 MM
201-300
STEERING HEIGHT 1 MM
0-100
CONNECTION LENGTH MM
301-400
CONNECTION LENGTH 1 MM
301-400
FIXING
COLUMN 45 MM
TYPE
DOPPIO
TECHNOLOGY
FRONTALI IN ARIA
LENGTH LEVER MM DETAIL
209
STEERING HEIGHT MM DETAIL
67
LENGTH LEVER 1 MM DETAIL
203
STEERING HEIGHT 1 MM DETAIL
91
CONNECTION LENGTH MM DETAIL
400
CONNECTION LENGTH 1 MM DETAIL
400
MODEL TYPE
SERIE 190
FUNCTION - HORN
Attivo
FUNCTION - LOW BEAM
Attivo
FUNCTION - HIGH BEAM
Attivo
FUNCTION - FLASHING
Attivo
FUNCTION - DIRECTION
Attivo
FUNCTION - WINDSCREEN WASHER
Attivo
FUNCTION - WINDSCREEN WIPER 1
Attivo
FUNCTION - MAIN LIGHTING
Attivo
FUNCTION - FORWARD GEAR
Attivo
FUNCTION - REVERSE GEAR
Attivo
APPLICATIONS
