The image shown here is for illustrative purposes only.
STEERING COLUMN WITCH
Code: 01.211.000.01
Doc. Code: 01-211-000-01
€275.00
Tax excluded
(335.5 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description
| FUNCTION | PEAK LOAD 12V | PEAK LOAD 24V |
|---|---|---|
| HORN | 5A | 3A |
| LOW BEAM | 6,5A | 4,5A |
| HIGH BEAM | 7A | 5A |
| FLASHING | 7A | 5A |
| DIRECTION | 7A | 5A |
| MAIN LIGHTING | 5A | 3A |
LENGTH LEVER MM
201-300
STEERING HEIGHT MM
101-200

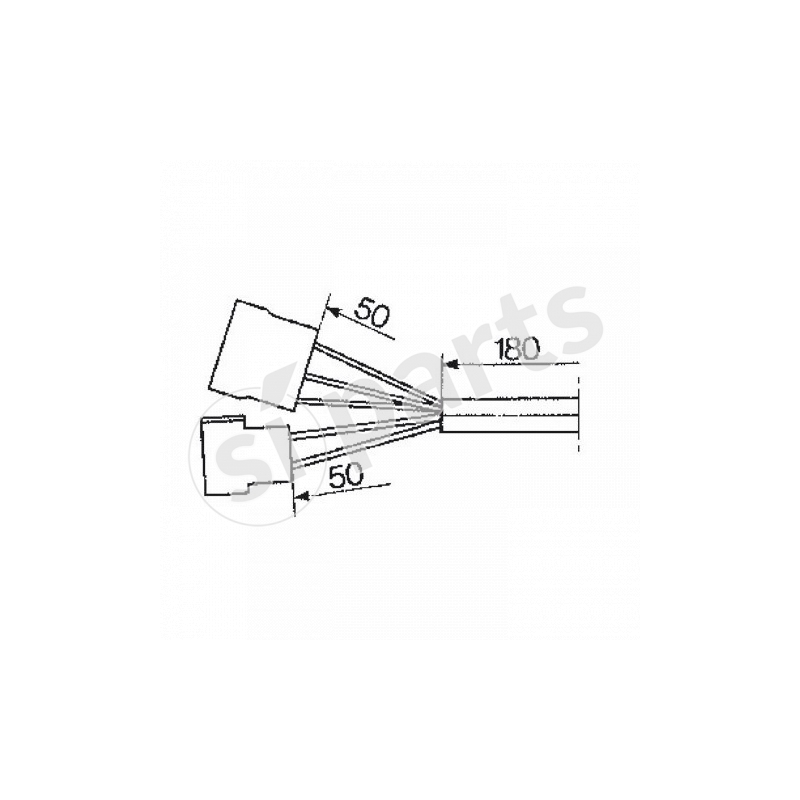

CONNECTION LENGTH MM
201-300
CONNECTION LENGTH 1 MM
201-300
FIXING
COLUMN 38 MM
TYPE
SINGLE
TECHNOLOGY
FRONTALI IN ARIA

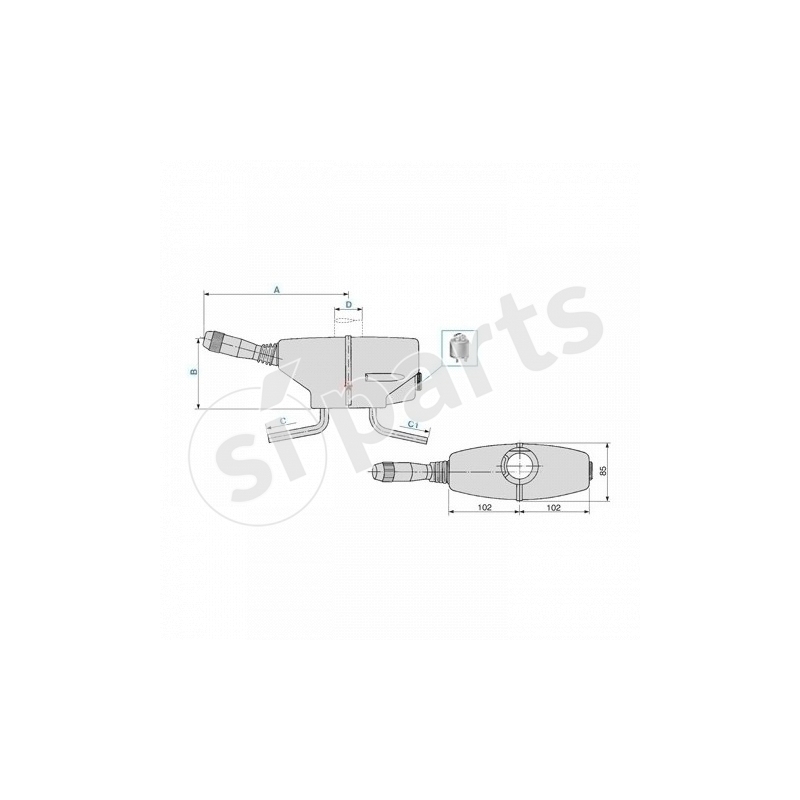

LENGTH LEVER MM DETAIL
210
STEERING HEIGHT MM DETAIL
102
CONNECTION LENGTH MM DETAIL
230
CONNECTION LENGTH 1 MM DETAIL
230
MODEL TYPE
SERIE 190
TYPE OF INTERIOR LEVER
METALLIC
LEVER COVERING
POLYAMIDE + FUNCTIONS SYMBOLS
TYPE OF CAP
NEOPRENE RUBBER
COLOR OF CAP
BLACK
PROTECTION HOUSING
POLYAMIDE
FUNCTION - HORN
Attivo
FUNCTION - LOW BEAM
Attivo
FUNCTION - HIGH BEAM
Attivo
FUNCTION - FLASHING
Attivo
FUNCTION - DIRECTION
Attivo
FUNCTION - MAIN LIGHTING
Attivo
APPLICATIONS
