The image shown here is for illustrative purposes only.

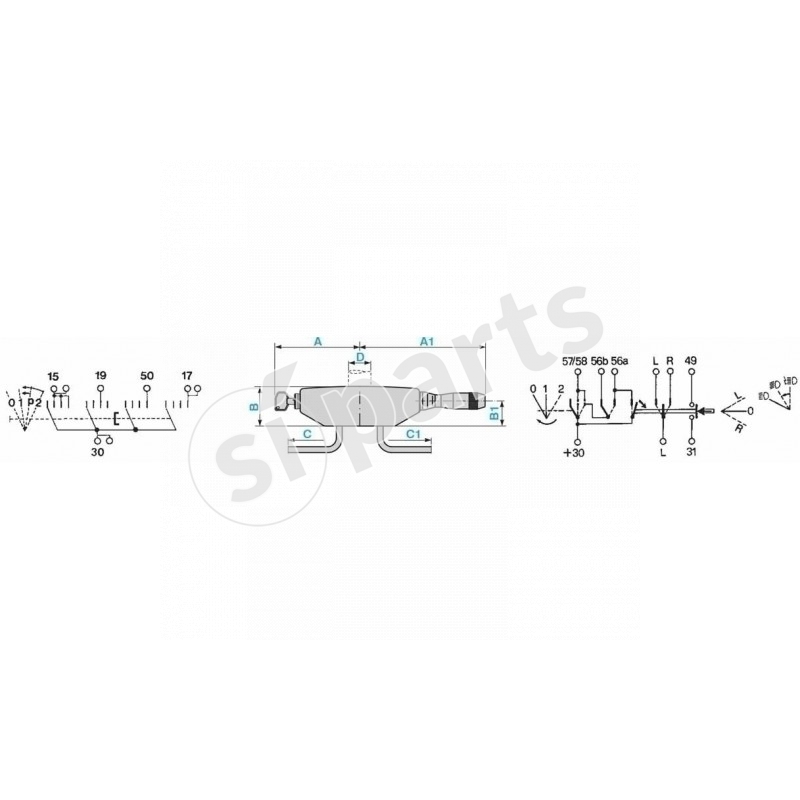

STEERING COLUMN SWITCH
Code: 01.0834.0000.01
Doc. Code: 01-0834-0000-01
€330.35
Tax excluded
(403.03 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description
| FUNCTION | PEAK LOAD 12V | PEAK LOAD 24V |
|---|---|---|
| HORN | 5A | 3A |
| LOW BEAM | 6,5A | 4,5A |
| HIGH BEAM | 7A | 5A |
| FLASHING | 7A | 5A |
| DIRECTION | 7A | 5A |
| MAIN LIGHTING | 5A | 3A |
LENGTH LEVER MM
101-200
STEERING HEIGHT MM
0-100
LENGTH LEVER 1 MM
201-300
STEERING HEIGHT 1 MM
0-100

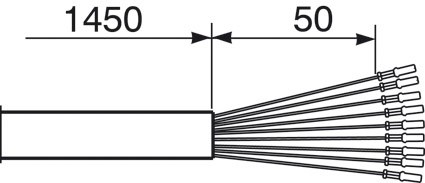

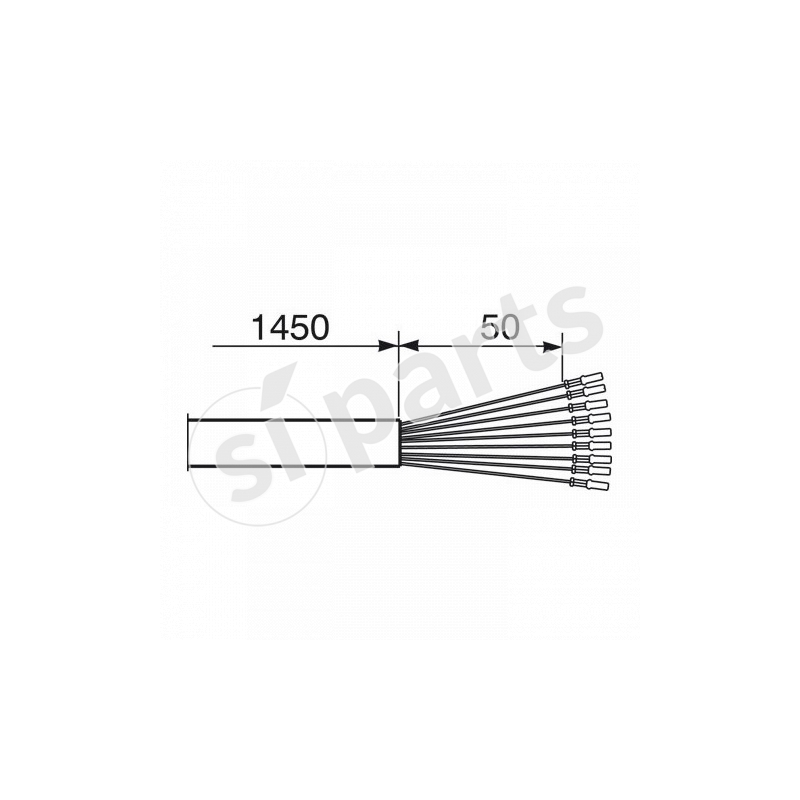

CONNECTION LENGTH MM
1401-1500
CONNECTION LENGTH 1 MM
1401-1500
FIXING
COLUMN 38 MM
TYPE
SINGLE
TECHNOLOGY
FRONTALI IN ARIA
LENGTH LEVER MM DETAIL
144
STEERING HEIGHT MM DETAIL
68
LENGTH LEVER 1 MM DETAIL
210
STEERING HEIGHT 1 MM DETAIL
44
CONNECTION LENGTH MM DETAIL
1500
CONNECTION LENGTH 1 MM DETAIL
1500
MODEL TYPE
SERIE 190
FUNCTION - HORN
Attivo
FUNCTION - LOW BEAM
Attivo
FUNCTION - HIGH BEAM
Attivo
FUNCTION - FLASHING
Attivo
FUNCTION - DIRECTION
Attivo
FUNCTION - MAIN LIGHTING
Attivo
APPLICATIONS
