The image shown here is for illustrative purposes only.

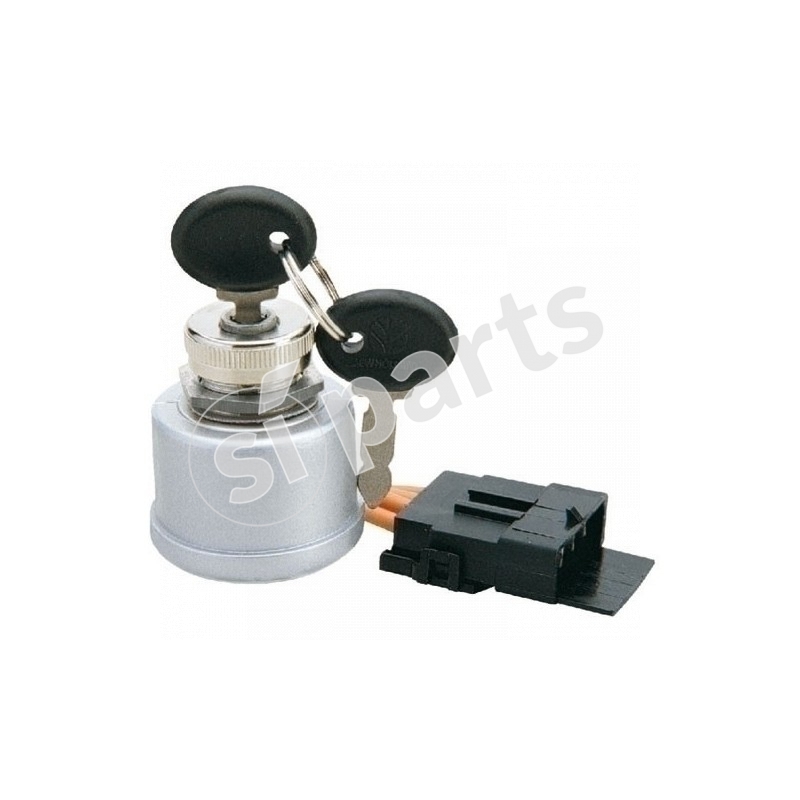

START SWICH
Code: 14.189.000.01
Doc. Code: 14-189-000-01
€57.15
Tax excluded
(69.72 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description

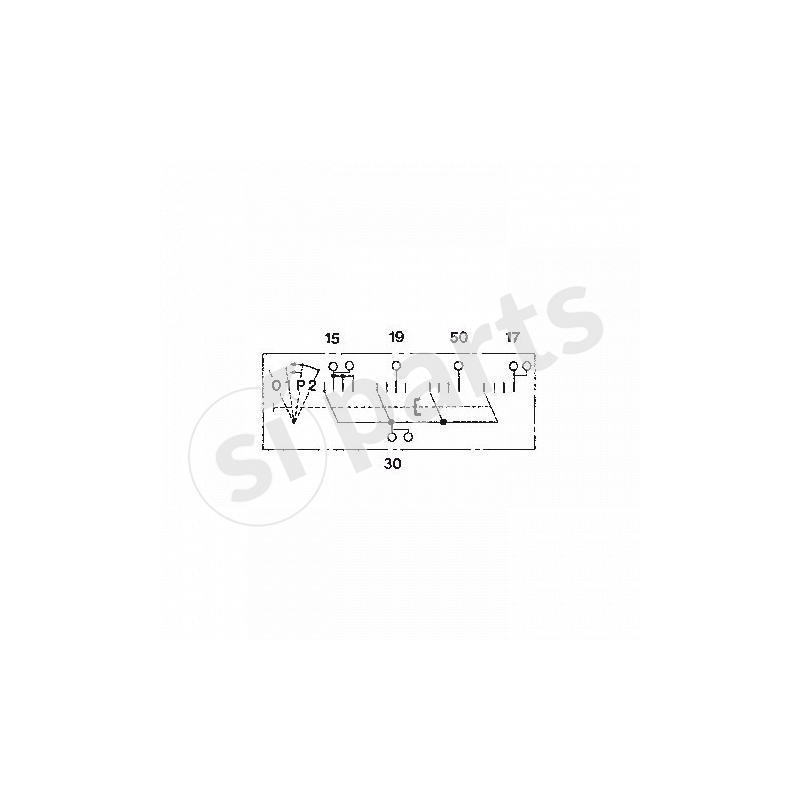

| KEY POSITION | CONNECTION | MAX CURRENT 12V | MAX CONNEC. TIME | FUNCTION |
|---|---|---|---|---|
| 0 | ||||
| 1 | 30-15 | 25 A | inf. | GEAR |
| P | 30-15 | 25 A | GEAR/PREHEATING | |
| P | 30-19 | 20 A | ||
| 2 | 30-15 | 25 A | inf. | GEAR/START |
| 2 | 30-17 | 20 A | 1 min. | |
| 2 | 30-50 | 35 A | 1 min. |
KEY REMOVABLE
ONLY IN POSITION 0
TYPE CONTACT
CONTACT STRIPS
APPLICATIONS
