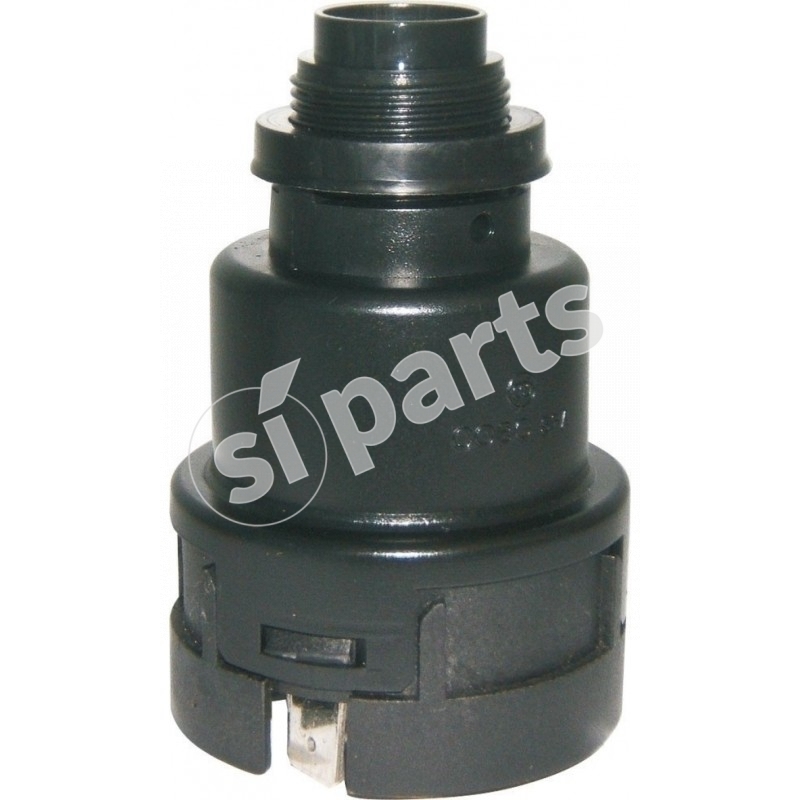

The image shown here is for illustrative purposes only.
IGNITION SWITCH
Code: 14.0431.0100.11
Doc. Code: 14-0431-0100-11
€69.50
Tax excluded
(84.79 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description
WITH STANDARD LOCK FOR DOORS/TANK CAP
ONCE ASSEMBLED, THE LOCK CAN'T BE REMOVED
ONCE ASSEMBLED, THE LOCK CAN'T BE REMOVED

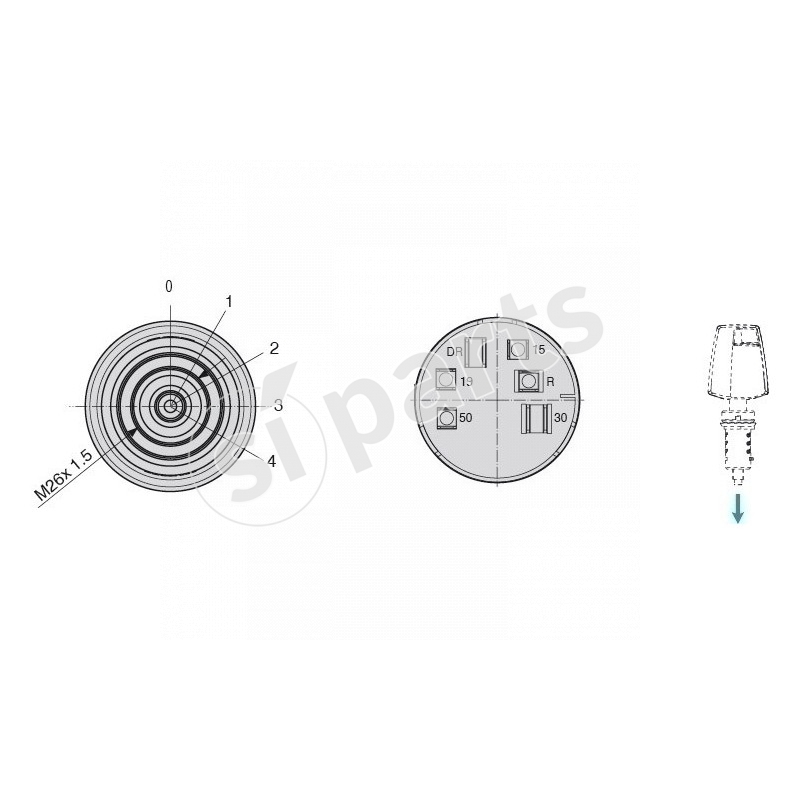

| KEY POSITION | CONNECTION | MAX CURRENT 12V | MAX CONNEC. TIME | FUNCTION | MAX CURRENT 24V | NOTES | CONNECTED TERMINALS |
|---|---|---|---|---|---|---|---|
| 0 | 8A res. | inf. | 4A res. | REMOVABLE KEY | 30>R | ||
| 1 | 40A indutt. | inf. | 20A indutt. | REMOVABLE KEY | 30>15 | ||
| 2 | 8A indutt. | inf. | 4A indutt. | REMOVABLE KEY | 30>19 | ||
| 3 | 10A resist. | inf. | 5A resist. | MOMENTARY POSITION | 30>DR | ||
| 4 | 40A indutt. | 1 min. | 40A indutt. | MOMENTARY POSITION | 30>50 |
HOUSING
BLSCK ACETAL RESIN
TEMPERATURA D'IMPIEGO °C
-40 -+ 85
SEALING IEC 529
IP65
ELECTRICAL LIFES CYCLES
25.000 CICLI
APPLICATIONS
