The image shown here is for illustrative purposes only.

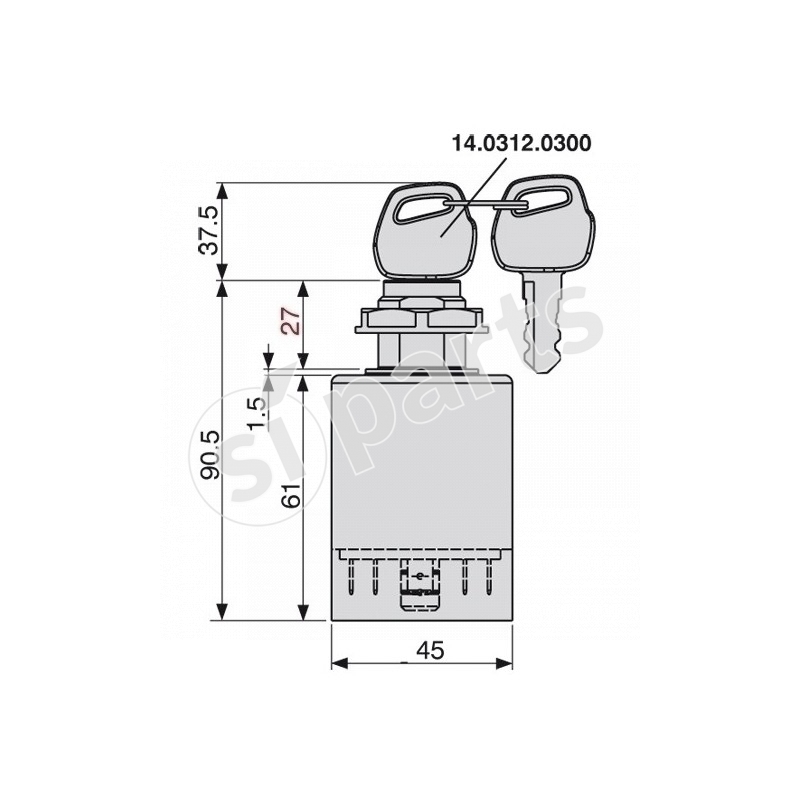

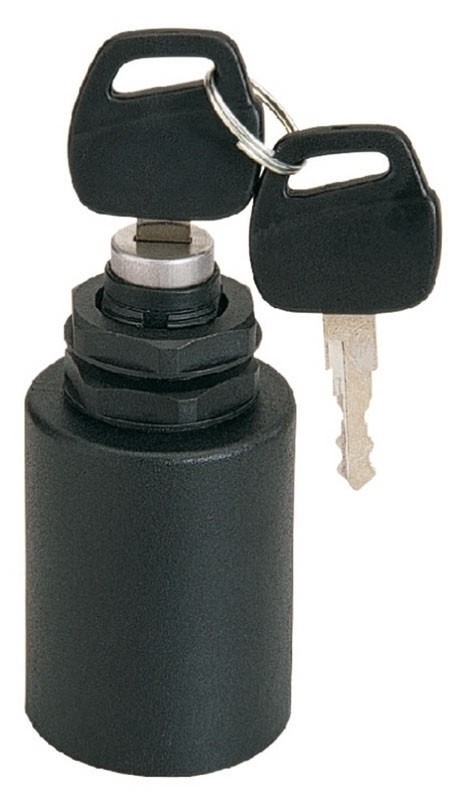

START SWITCH
Code: 14.0312.0000.01
Doc. Code: 14-0312-0000-01
€70.35
Tax excluded
(85.83 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
Description
BEFORE STARTING THE ENGINE AGAIN, TUEN THE KEY INTO POSITION "0"

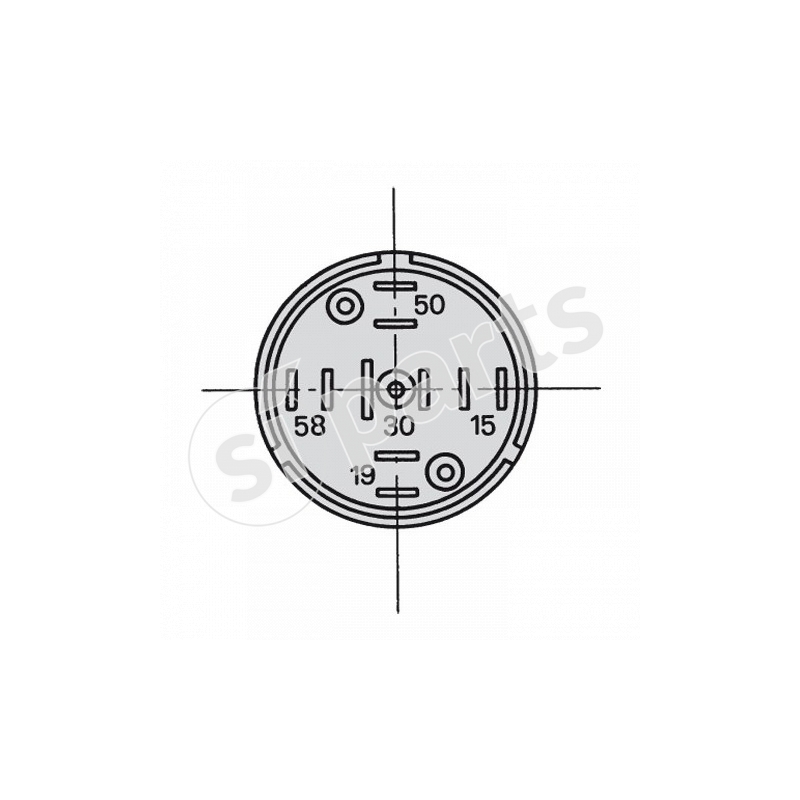

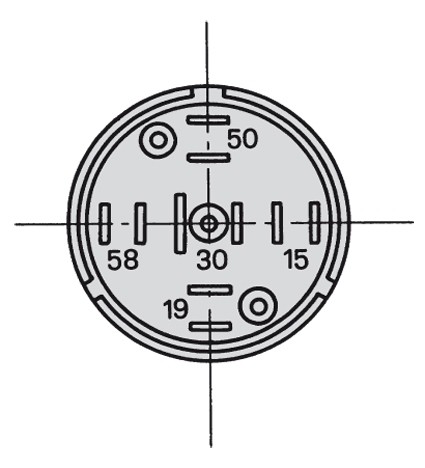

| KEY POSITION | CONNECTION | MAX CURRENT 12V | MAX CONNEC. TIME | FUNCTION | MAX CURRENT 24V | NOTES | CONNECTED TERMINALS |
|---|---|---|---|---|---|---|---|
| 0 | 30A | inf. | REMOVABLE KEY | 30<15 | |||
| 1 | 30A | inf. | REMOVABLE KEY | 30<50 | |||
| 2 | 30A | inf. | MOMENTARY POSITION | 19<58 |
KEY REMOVABLE
ONLY IN POSITION 0
HOUSING
BLACK POLYAMIDE
SEALING IEC 529
IP65
TEMPERATURA D'IMPIEGO °C
- 20 ÷ + 85
RESTART INHIBITOR
YES
APPLICATIONS
