The image shown here is for illustrative purposes only.
CANVIEW 3+ INTERLOCKING DISPLAY
Code: 06512024
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
CANVIEW 3+ INTERLOCKING DISPLAY
Model INTERLOCKING, BLACK FRAME, WHITE BACKLIGHTING, NO TOUCHSCREEN.
Available in the following versions:
- P/N 06512026, NEW Code 1017604, INTERLOCKING, BLACK FRAME, GREEN BACKLIGHTING, NO TOUCHSCREEN.
- P/N 06512027, NEW Code 1017605, INTERLOCKING, GREY FRAME, GREEN BACKLIGHTING, TOUCHSCREEN.
- P/N 06512030, NEW Code 1017609, INTERLOCKING, BLACK FRAME, YELLOW/GREEN BACKLIGHTING, NO TOUCHSCREEN.
- P/N 06512031, NEW Code 1017611, INTERLOCKING, BLACK FRAME, YELLOW/GREEN BACKLIGHTING, TOUCHSCREEN.
- P/N 06512034, NEW Code 1017621, INTERLOCKING, WHITE FRAME, WHITE BACKLIGHTING, NO TOUCHSCREEN.
- P/N 06512035, NEW Code 1017622, INTERLOCKING, WHITE FRAME, WHITE BACKLIGHTING, TOUCHSCREEN.
- P/N 06512038, NEW Code 1017626, INTERLOCKING, BLACK FRAME, WHITE BACKLIGHTING, TOUCHSCREEN.
- P/N 06512041, NEW Code 1017640, INTERLOCKING, GREY FRAME, WHITE BACKLIGHTING, NO TOUCHSCREEN.
- P/N 06512042, NEW Code 1017643, INTERLOCKING, BLACK FRAME, GREEN BACKLIGHTING, TOUCHSCREEN.
POWER SUPPLY VOLTAGE V
9 - 32V
OPERATING TEMPERATURE
- 30 °C ÷ + 75 °C
STORAGE TEMPERATURE
- 35 °C ÷ + 85 °C
FRONT SEALING
IP66
REAR SEALING
IP65
QUALIFICATION TEST
Unideck standard UKCPST001

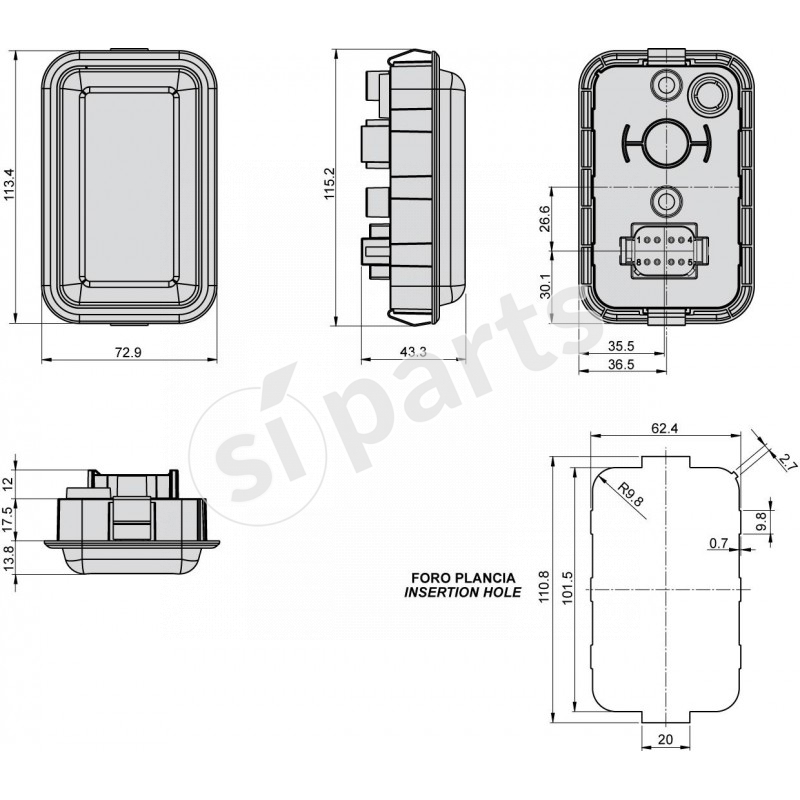

DIMENSIONS MM
113,4 x 72,9 mm
CONNECTOR
1 x Deutsch DT Series 8 pins
COUNTERPART
Deutsch DT06-08SA
COMMUNICATION
1 line CAN-bus
BACKLIGHT
LED
BUZZER
INTEGRATED
FIXING
PANEL MOUNT WITH SNAP SPRINGS
DISPLAY LCD
DOT MATRIX 176 X 80
APPLICATIONS
